Silicon Carbide tile

Page view:
Name

Silicon Carbide tile

没有此类产品
Product description

Tecera International

Wear Resistant Silicon Carbide Ceramics

■ Application:

The Reaction Bonded Silicon Carbide Ceramic (RSIC/SISIC) is an ideal wear resistant material, which is especially suitable for the strong abrasive, coarse particles, classification, concentration, dehydration and the other operations.

 It is widely used in mining industry, steel industry, coral processing industry, chemical industry, raw material-making industry, mechanical sealing, surface sandblasted treatment and reflector etc. Thanks to the excellent hardness and abrasive resistance, it can effectively protect the part where need wear protection, so as to prolong the service life of the equipment.

Specifications:

Item

 Unit

Data

Temperature of application

 1380℃

Density

 G/cm3

>3.02

Open porosity

%

 <0.1

Bending strength

Mpa

250 (20℃)

Bending strength

 MPa

280 (1200℃ )

Modulus of elasticity

GPa

 330 (20℃)

 Modulus of elasticity

GPa

300 ( 1200℃ )

 Thermal conductivity

W/m.k

45 (1200℃ )

 Coefficient of thermal expansion

K-1 ×10-6

 4.5

Rigidity



13

 Acid-proof alkaline



excellent

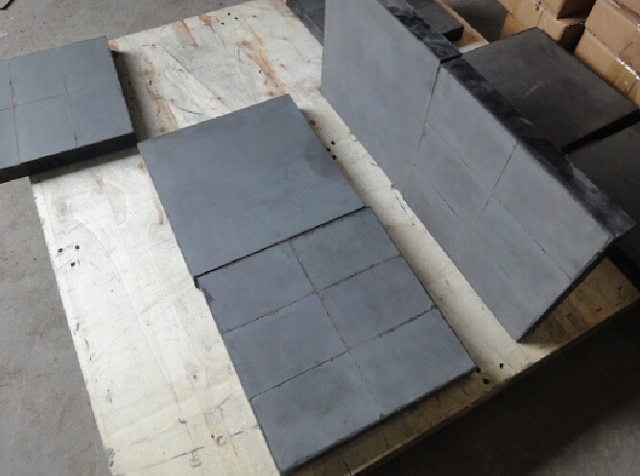

■ Available Shape and sizes:

Thickness: from 6mm up to 25mm

Regular Shape: SISIC plate, SISIC Pipe, SiSiC Three Links, SISIC Elbow, SISIC Cone Cyclone.

Remark: Other sizes and shape are available upon requests.

■ Packaging:

In carton box, packed in fumigated wooden pallet with net weight 20-24MT/20'FCL.

■ Key benefits:

1. Excellent wear resistance, impact resistance and corrosion resistance;

2. Excellent flatness and excellent temperature resistance up to 1350℃

3. Easy installation;

4. Longer service life (is about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane)
