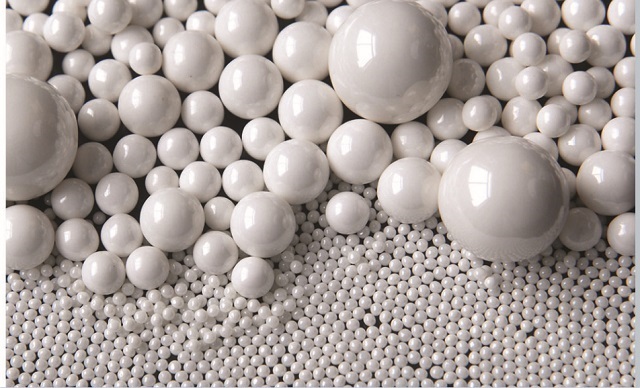

TZ® Zirconia grinding beads and ball
TZ® Zirconia grinding beads and ball
The TZ ®series Zirconia ceramic grinding beads/ball is used as high class grinding media. Thanks to the extremely low wear loss, the zirconia based ceramic beads/ball is contamination free grinding media. Its widely used in various industries like medicine, food, cosmetics, paints, textiles,Structural Ceramics, Electronics Ceramics, Magnetic material, Metallurgy, printing and dyeing, pigment etc.
Key words:
Category:
Ceramic Grinding Media
TZ® Zirconia grinding beads and ball
Zirconia grinding beads and ball
■ Application:
The TZ ®series Zirconia ceramic grinding beads/ball is used as high class grinding media. Thanks to the extremely low wear loss, the zirconia based ceramic beads/ball is contamination free grinding media. Its widely used in various industries like medicine, food, cosmetics, paints, textiles,Structural Ceramics, Electronics Ceramics, Magnetic material, Metallurgy, printing and dyeing, pigment etc.
■Performance Index
|
Item |
Performance Index |
|
Main Composition |
95% ZrO2,5% Y2O3 |
|
Density |
> 6.0 |
|
Hardness (HRA) |
> 87 |
|
Thermal Expansion Coefficient(10-6/k) |
9.6(20-400) |
|
Elastic Modulus(GPa) |
200-250 |
|
Fracture Toughness(Mpa1/2) |
10 |
|
Bending Strength(Mpa) |
>1150 |
|
Grain Size(um) |
<0.6 |
|
Thermal Conductivity(W/m.K) |
2.5 |
|
Acid-alkali Resistance Performance (Ordinary Temperature) |
Excellent |
■ Regular Size:
Grinding Beads: ø0.1-0.2 ø0.2-0.4 ø0.4-0.6 ø0.6-0.8 0.9-1.1
ø1，ø2，ø3，ø5，ø7，ø10，ø12，ø15，ø20
Grinding Ball: Ball: ø30 ø40 ø50 ø55
Grinding Cylinder(mm)：φ3×3，φ5×5，φ7×7，φ10×10，φ12×12
■Key Benefit:
1. Contamination free grinding media due to the extremely low wear loss
2. High grinding efficiency due to density up to 6.
3. Excellent impact strength due to the superior toughness.
