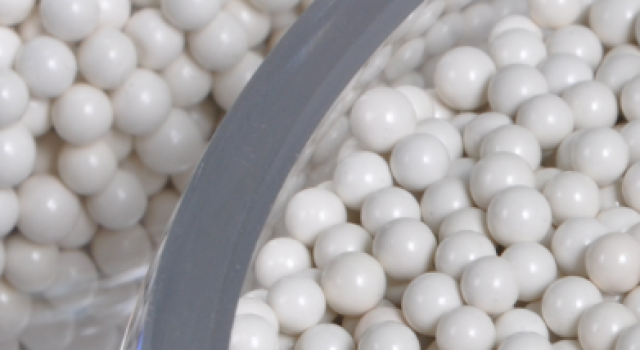

TZS® Zirconium Silciate grinding beads
TZS® Zirconium Silciate grinding beads
·Very High grinding efficiency for superfine grinding. ·Fine chemical stability & contamination-free to the grinded material. ·Extremely low wear rate . ·Excellent combination of toughness and hardness . ·Technical support provided to optimize milling conditions .
Key words:
Category:
Ceramic Grinding Media
TZS® Zirconium Silciate grinding beads
Zirconium Silciate grinding beads
■Application:
Type |
Application |
TZS320® |
1. Non-metallic minerals like Calcium Carbonate, kaolin clay, zirconium silicate, TiO2 and other minerals; |
TZS360® |
1. Non-metallic minerals like Zirconium Silicate, Calcium Carbonate, kaolin clay; |
TZS400® |
1. Non-metallic minerals like Zirconium Silicate,GCC, kaolin clay; |
TZS420® |
1.Non-metallic minerals like Calcium Carbonate, kaolin clay, zirconium silicate, TiO2 and other minerals; |
■Specification
Specification |
TZS 320® |
TZS360® |
TZS400® |
TZS420® |
Chemical |
ZrO2 Al2O3 SiO2 |
ZrO2 Al2O3 SiO2 |
ZrO2 Al2O3 SiO2 |
ZrO2 Al2O3 SiO2 |
Density |
>3.25 |
3.60~3.70 |
>4.0 |
4.20min |
Packing |
>1.85 |
|
>2.35 |
2.85min |
Hardness |
8 |
8 |
> 8 |
8min |
Roundness |
>90% |
>90% |
>90% |
>90% |
Size |
0.2 ~ 12mm , |
0.2 ~ 12mm, |
0.4 ~ 13mm,. |
0.2 ~ 12mm, |
Color |
White |
White |
off-white |
White |
■Packaging:
25kg net in PP-bag or big bag of 500 or 1000kg net. 20-24MT/20'FCL.
■Key benefits:
·Very High grinding efficiency for superfine grinding.
·Fine chemical stability & contamination-free to the grinded material.
·Extremely low wear rate .
·Excellent combination of toughness and hardness .
·Technical support provided to optimize milling conditions .
■Wear Loss Testing
Grinding Beads |
Size |
Beads loading |
Weight of beading after grinding/g |
Wear Loss/g |
Wear Loss |
Alumina Grinding Beas |
8 |
500 |
498.6 |
1.4 |
0.28% |
TZS400 ceramic beads |
8-10 |
500 |
499.7 |
0.3 |
0.06% |
Testing Method:Ceramic beads loading quantity 500g, water loading quantity150g,grinding time 1 hour,volume of jar mill : 500ml.
■Conclusion:
The wear loss rate of alumina ceramic beads is about 4.6 times higher than TZS400 zirconium silicate grinding beads.
