TC® Alumina Ceramic Cylinder
The TC Series alumina ceramic cylinder can be combined with high quality rubber to be used as wear protection material in mining industry, power plant, steel plant etc. The alumina cylinder boned rubber wear panel has excellent impact resistant performance against other wear resistant material. Thanks to the excellent wear and impact resistance performance, the alumina cylinder can help to expend the life time of the equipment effectively.
Key words:
Category:
Wear Protection Products
TC® Alumina Ceramic Cylinder

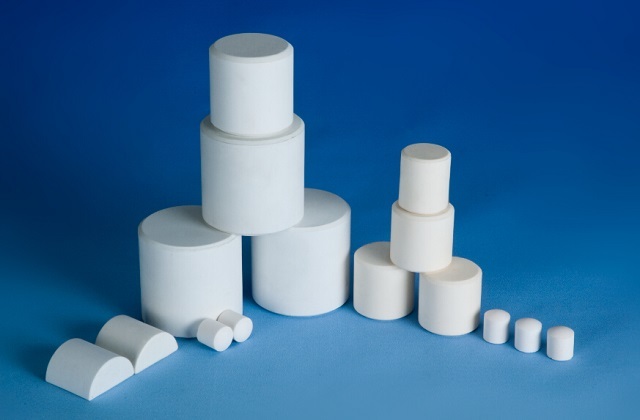

Alumina Ceramic Cylinder
■ Application:
The TC Series alumina ceramic cylinder can be combined with high quality rubber to be used as wear protection material in mining industry, power plant, steel plant etc. The alumina cylinder boned rubber wear panel has excellent impact resistant performance against other wear resistant material. Thanks to the excellent wear and impact resistance performance, the alumina cylinder can help to expend the life time of the equipment effectively.
■Performance Index：
|
Products |
TC92 ® |
TC95 ® |
TC97 ® |
TC99® |
|
Alumina Content （%） |
≥92 |
≥95 |
≥97 |
≥99 |
|
Moh’s Hardness (Mohs) |
9 |
9 |
9 |
9 |
|
Rate of Water Absorption（%） |
≤0.01 |
≤0.01 |
≤0.01 |
≤0.01 |
|
Fracture Toughness(n/mm) |
40 |
42 |
44 |
48 |
|
Bending Strength （Mpa） |
255 |
275 |
285 |
300 |
|
Bulk Density （g/cm3） |
≥3.63 |
≥3.68 |
≥3.73 |
≥3.83 |
■Specifications:
|
Shape |
Size(mm) |
Size(mm) |
Size(mm) |
Size(mm) |
Size(mm) |
Size(mm) |
Size(mm) |
|
Cylinder |
Dia.15*9.75 |
Dia.16*16 |
Dia.25*9.75 |
Dia.30*30 |
Dia.32*16 |
Dia.32*32 |
Dia.50*24 |
|
Cylinder |
Dia.20*9.75 |
Dia.20*20 |
Dia.25*25 |
Dia.31*31 |
Dia.32*24 |
Dia.40*40 |
Dia.50*50 |
|
Cylinder |
Dia.40*42 |
Dia.25*30 |
Dia.21*21 |
/ |
/ |
/ |
/ |
|
Semi-Cylinder |
Dia.20*20 |
Dia.21*21 |
Dia.32*32 |
/ |
/ |
/ |
/ |
Remark: Any other sizes are available upon customer’s requests.
■Packaging:
In carton box or PP-bag , packed in fumigated wooden pallet with net weight 20-25MT/20'FCL.
■Key benefits:
·Excellent anti-wear and corrosion resistance.
·Excellent impact resistance.
·Avoid shutdown time and maximize the productivity of your plant.
