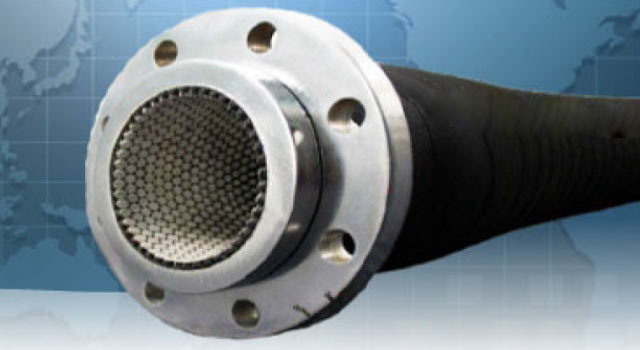

Wear Resistant Ceramic Hose
Wear Resistant Ceramic Hose
(1) Ceramic lining is 12 times more wear-resistant than stainless steel. (2) Impact resistant – virtually impossible to destroy the ceramic segments. (3) Flexible – minimum bend radius is roughly 12 times the hose I.D. (4) Corrosion-resistant – compatible with most chemicals found in slurries. (5) Wide variety of end-connections. (6) Purchase any continuous length up to 65 feet.
Key words:
Category:
Wear Protection Products
Wear Resistant Ceramic Hose
Wear Resistant Ceramic Hose
■Features:
(1) Ceramic lining is 12 times more wear-resistant than stainless steel.
(2) Impact resistant – virtually impossible to destroy the ceramic segments.
(3) Flexible – minimum bend radius is roughly 12 times the hose I.D.
(4) Corrosion-resistant – compatible with most chemicals found in slurries.
(5) Wide variety of end-connections.
(6) Purchase any continuous length up to 65 feet.
■Specification:
(1) Available Dimensions:
Units:inches
Size |
I.D. |
O.D. |
Max |
Min Bend Radius |
1 |
1.00 |
1.65 |
32LF |
20 |
1¼ |
1.25 |
1.97 |
32LF |
25 |
1½ |
1.50 |
2.20 |
32LF |
30 |
2 |
2.00 |
2.83 |
65LF |
40 |
2½ |
2.67 |
3.70 |
65LF |
54 |
3 |
3.00 |
4.13 |
65LF |
60 |
3½ |
3.27 |
4.72 |
65LF |
64 |
4 |
4.00 |
5.51 |
65LF |
80 |
6 |
6.00 |
7.48 |
65LF |
120 |
8 |
7.64 |
9.25 |
32LF |
153 |
10 |
9.65 |
11.42 |
32LF |
193 |
12 |
11.77 |
13.78 |
32LF |
235 |
(2)Standard End-Connections
Remark :Additional End-connections also available, please contact us for any custom requirements.
■ Technical Parameters
(1) Size range from 1” till 24” length till 20 meters.
(2) Maximum Operating Pressure 150Psig
(3) Maximum Operating Temperature 250oF
